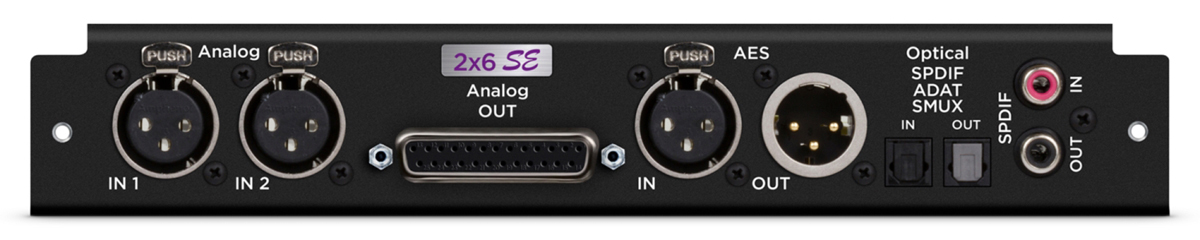

Apogee 2X6SE

2X6SE | module card, 2x6 analog I/O + 8x8 Optical + AES I/O Apogee Symphony I/O Mk II 2×6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB INPUTS Analog IN: 2 balanced inputs on 2 female XLR connectors AES IN: Stereo input on 1 female XLR connector *Optical IN: Supports ADAT, SMUX & S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz Coax IN: 2 channels of S/PDIF, up to 192 kHz *Dig I/O hardware switch selects AES or Optical digital I/O format OUTPUTS Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector AES OUT: Stereo output on 1 male XLR connector *Optical OUT: Supports ADAT, SMUX & S/PDIF ADAT: 8 channels 44.1-48 kHz SMUX: 8 channels 88.2-96 kHz S/PDIF: 2 channels, up to 96 kHz Coax OUT: 2 channels of S/PDIF, up to 192 kHz
