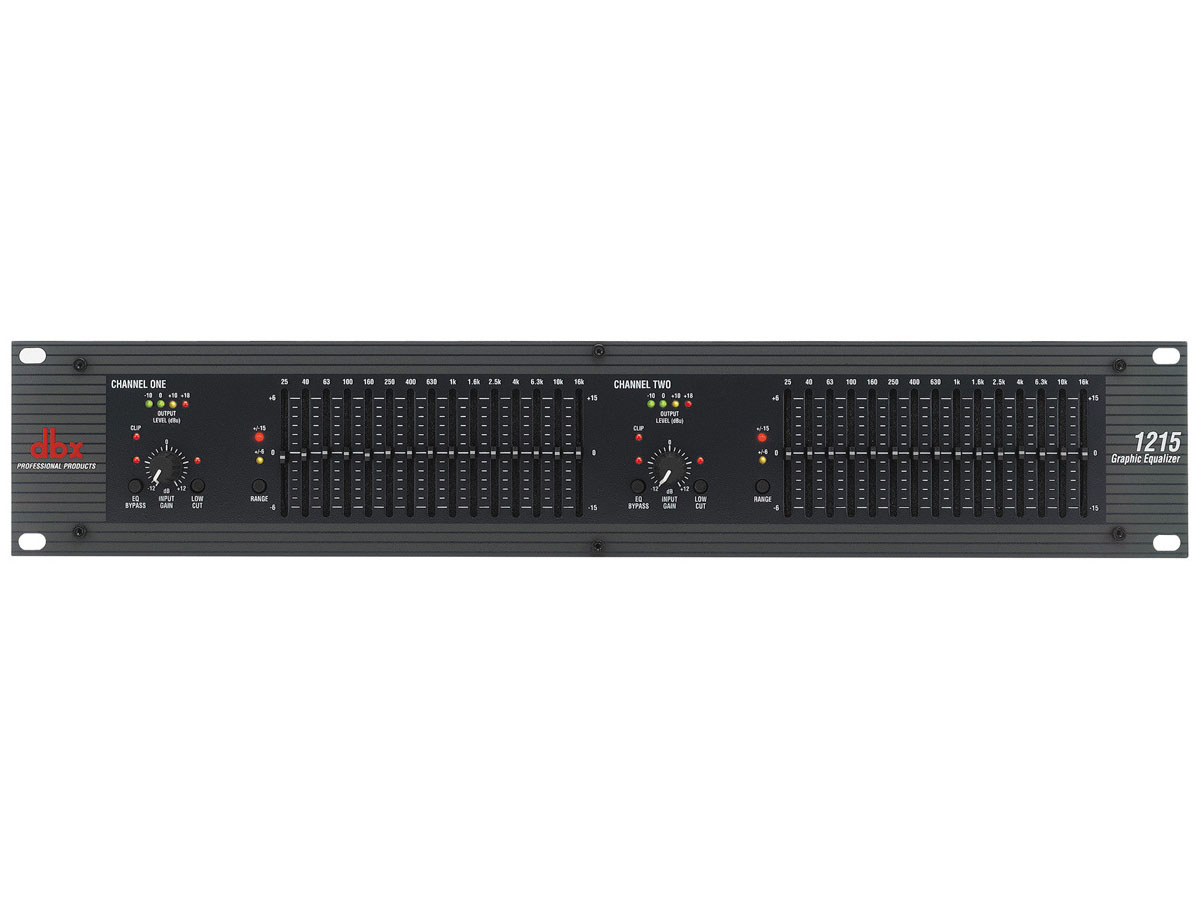

DBX 1215 | Double 15-band graphic equalizer

12 Series - Dual 15 Band Graphic Equalizer The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1215 provides standard features like dual channels, 15 2/3 octave bands, ISO frequency centers, +/-12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other thoughtful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier. Features Switchable boost/cut ranges of ±6 or ±15 dB Electronically balanced/unbalanced inputs Servo balanced/unbalanced inputs RF filtered inputs and outputs XLR, Barrier Strip, and 1/4" TRS connectors -12dB/+12dB input gain range 18dB/octave 40Hz Bessel low-cut filter Chassis/signal ground lift capability Internal power supply transformer Power-off hardwire relay bypass with 2-second power-up delay
