* Wireless microphone with 1 handheld microphone, pocket transmitter and receiver
* True Diversity technology
* Automatic frequency selection.
* 160 channels in 10 groups
* Automatic pairing between transmitter and receiver
* Ease of use operation and setup

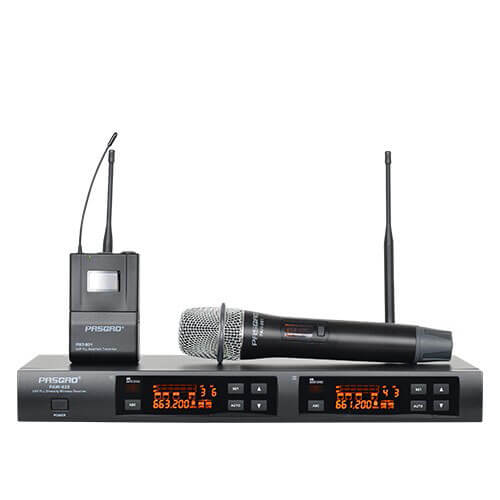

* Pasgao PAW-920/PAH¬801/PBT-801 is a dual wireless microphone system with dual receivers and * 1 handheld microphone and a pocket transmitter for clip-on microphone. The system allows the use of * 2 microphones at the same time, which is ideal for meetings, lectures, conferences, theater and more.
With the Pasgao PAW-920, you can choose between 160 different frequencies in 10 frequency groups in the frequency range 823-832 MHz. These frequencies are approved in relation to the latest legal requirements.
The PAW-920 receiver is a compact and easy-to-use high-quality receiver with an impressive range and excellent signal quality.
The receiver uses automatic frequency scanning to find available frequencies in the area and uses infrared synchronization to automatically pair the transmitter and receiver to the selected frequency.
This feature makes the Pasgao PAW-920 an incredibly easy-to-use system. To make life even easier, a digital volume control system automates the transmitted volume, ensuring optimal signal strength without distortion. The built-in digital volume control system also eliminates the need for volume control,
which enables switching between different microphone users. The result is a clear and accurate sound reproduction.
The PAH-801 is a vocal microphone suitable for both speech and live performance. The microphone's frequency response is similar to the most popular dynamic vocal microphones, and it provides a well-defined and clear sound while minimizing feedback. The gain control of the PAH-801 microphone allows for fine tuning of the
microphone sensitivity to suit the singer/performer. A backlit LCD displays the microphone's operating status, including current group, channel, battery and lock status.
The PBT-801 is a compact, lightweight and discreet transmitter that can be used with headsets and clip-on microphones (not included). A backlit LCD display shows the operating status of the microphone, including current group, channel, battery and lock status.
True Diversity
Pasgao PAW-920 / PAH¬801 is a True Diversity system, which means that the receiver is equipped with two antennas and that the system continuously monitors the signal strength of each antenna and automatically switches to the strongest receiving antenna. This prevents interruptions that can occur due to destructive interference patterns in the radio waves or when a performer moves around the stage with the transmitter. This is known as True Diversity reception technology as opposed to quasi-diversity reception which uses two antennas but only monitors one antenna at a time and switches when the antenna falls below a certain signal strength, regardless of the strength of the other antenna.
Other useful features
A mute control on the back of the receiver acts as a noise gate and is a useful feature for picking up noise when the microphone is not in use. The backlit LCD screen on the front of the receiver shows the status of each receiving channel, including the current group and frequency, and active antenna. The 6-segment LED meter indicates RF signal strength and audio input levels.
